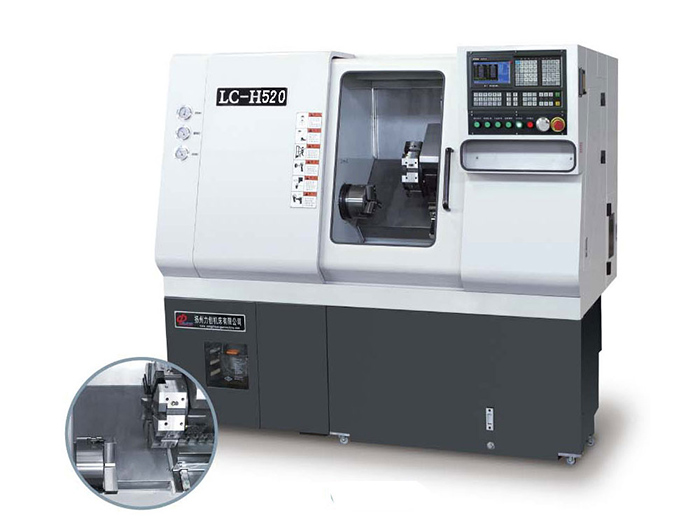

LC-H360 LC-H460 LC-H520
Slitting
LC-H20 LC-H30

Specification

Name

unit

LC-H20

Swing over bed

mm

¢240

Swing over cross slide

mm

¢70

Length of work piece

mm

100

X-travel
Z-travel

mm
mm

180
150

X-Rapid speed
Z-Rapid speed

m/min
m/min

15
15

X-Cutting feed
Z-Cutting feed

mm/min
mm/min

1~3000
1~5000

X Repositioning accuracy
Z Repositioning accuracy

mm
mm

0.005
0.008

 Min. input

mm

0.001

Spindle bore
Spindle nose
Range of spindle speed

mm

r/min

26

60~6000

Power of main motor

kw

2.2

Max. spindle torque

nm

14.6

Max tool shrank

mm

12×12

Power supply

kva

6

Overall size (L×W×H)

mm

1380×1040×1480

Packing size (L×W×H)

mm

1380×1040×1480

Net weight/ Gross weight

kg

1000/1200

Standard Configuration





Frequency conversion spindle motor





2-Axis box way



20#

Gang tool





Auto-lubrication, coolant system





Full cover





GSK980TA1 numerical control system





Work piece auto-holding and loosen system





Kick-out device





Standard Accessories





Turret wrenches

1个

8

Allen wrench

1套

3,4,5,6,8

Collets

1套

8,10,12,16,20

Collets without air-hardening

1个



Single-head wrench

1个

30S91-2

ER20 Circlip

1套

2,4,6,8

ER20 Milling chuck

1个

自制

ER20 Nut

1个

ER20-T1

Optional Configuration

GSK980TD,KND90T,FANUC Oi-mate-TD,HNC-21td numerical control system



Features:
◆High speed separate spindle unit
◆2-Axis Hiwin linear guide way
◆High precision
◆Automatic pneumatic clamping
