Standard part |
·GSK 980 TA1
·φ250 Three jaw chuck
·4 Position electric turret
·Auto lubrication system
·Full cover |
Standard accessories |
·0i1 gun
·Reductions sleeve & center
·Wrenches |
optional |
KND90Ti SIEMENS 802C , HNC-21TD , FANUC Oi-mate-TD
·Power chuck
·6 position electric turret |
Features :
◆Range of gear wheel shift, variable frequency control and spindle speed change is wide
◆Whole stand , high rigidity , stable precision
Specification
Model |

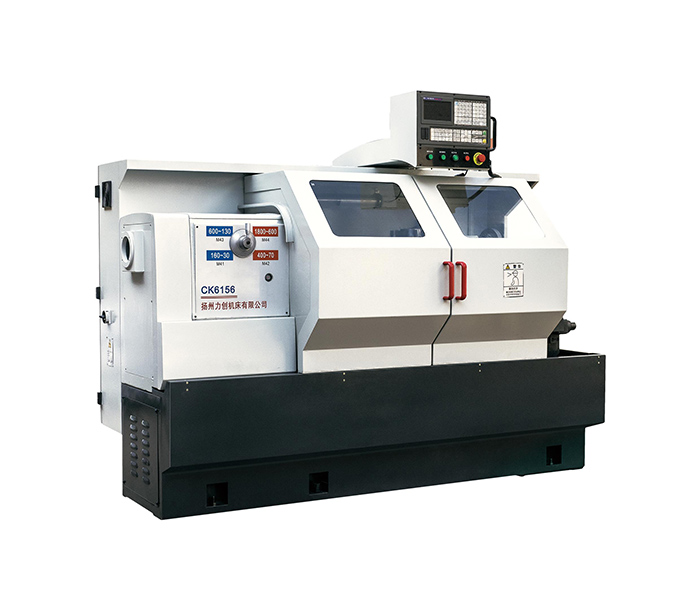

CK6156 |
CK6166 |
Capacity |
|
|
Swing over bed |
￠560mm(22＂) |
￠660mm(26＂) |
Swing over cross slide |
￠355mm(14＂) |
￠440mm(17＂) |
Distance between centers |
1000(40＂)/1420(56＂) |
1500mm(59＂) |
Main stock |
|
|
Spindle nose |
D1-8 |
D1-8 |
Spindle bore |
￠80mm(3-1/8＂) |
￠105(4＂) |
Taper of spindle bore |
No.7 Morse |
￠113(1:20)4档/MT5 |
Range of spindle speed |
4 changes, 32~2000r/min |
10~1500 |
Feeds |
|
|
X-travel |
280mm(11＂) |
370mm(14-1/2＂) |
Z-travel |
1420mm(56＂) |
1460mm(57-1/2＂) |
X rapid speed |
3000mm/min(118＂/min) |
7500mm/min(295＂/min) |
Z rapid Speed |
6000mm/min(236＂/min) |
9000mm/min(354＂/min) |
Min. input |
0.001mm(0.0000349＂) |
0.001mm(0.0000349＂) |
X positioning accuracy |
±0.015mm(±0.0006＂) |
±0.022mm(±0.00087＂) |
Z positioning accuracy |
±0.0225mm(±0.000886＂) |
±0.032mm(±0.00126＂) |
X repositioning accuracy |
±0.006mm(±0.00024＂) |
±0.006mm(±0.00024＂) |
Z repositioning accuracy |
±0.01mm(±0.000394＂) |
±0.01mm(±0.000394＂) |
Nos. of tool position |
4 |
|
Max. Section Of tool |
25×25mm(1＂×1＂) |
25×25mm(1＂×1＂) |
Tailstock |
|
|
Dia. of tailstock sleeve |
￠75mm(3＂) |
￠90mm(3-1/2＂) |
Travel Of tailstock sleeve |
￠180mm(7＂) |
￠235mm(9-1/4＂) |
Taper of tailstock sleeve |
No. 5 Morse |
No. 5 Morse |
Motor |
|
|
Power of main motor |
7.5kw(10HP) |
7.5kw(10HP) |
Power of coolant pump |
0.09kw(1/8HP) |
0.09kw(1/8HP) |
Dimension and weight |
|
|
Overall dimension ( L×7.5kw(10HP)W×H ) |
310×122×193cm |
|
Packing size ( L×W×H ) |
340×140×224cm |
|
Net weight |
2350kg |
|
Gross weigh |
2750kg |
|
|
