Application:

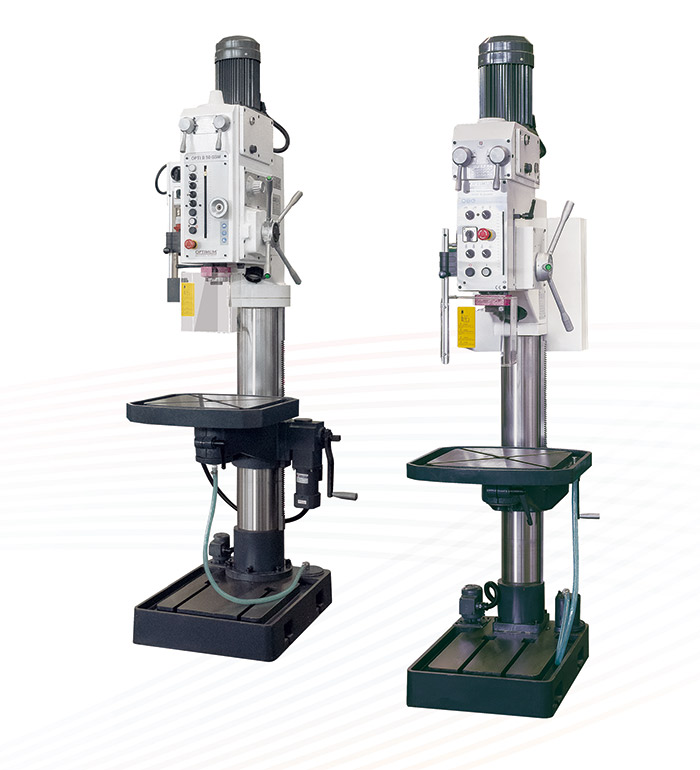

This machine is designed for drilling, counterboring ,reaming, tapping, spotfacing, etc, The maximum drilling capacity is 50mm on small or middle sized workpieces. It is widely used in machine works and repair shops for single piece or small lot production, having the features of abundant horsepower and high rigidity when compared with all the others of its kind at home and abroad.



Standard accessories

·Work light
·Coolant system
·Fender device
·Tool box & tools 1 set





Special accessories

·Lifting worktable by motor(only for model Z5050)



Name

Z5040/Z5040A

Maximum Drilling Diameter

40mm

Taper Of Spindle Hole

MT4#

Distance From The Center Of Spindle To The Surface Of The Vertical Column

350mm

Maximum Travel Of Spindle

180mm

Range Of Spindle Speed

50~1450mm

Maximum Distance From Spindle Nose To Base Plate Working Surface

1320mm

Maximum Distance From Spindle Nose To Working Table

780mm

Dimensions Of Working Table

560×385mm/560×560mm

Dimensions Of Base

730×500mm

Width Of T Slot

18mm

Distance Of T Slot Of Base

150mm

Range Of Feed

0.1,0.2

Power Of Main Motor

0.85/1.5kW

Power Of Coolant Pump

60W

Overall Dimension(L×W×H)

73×56×222cm

Packing Size(L×W×H)

113×70×228cm

Gross Weight/net Weight

545/465kg
