Features:
◆Stand and bed full casting, high rigidity
◆2-Axis Taiwan linear guide way
◆European style design

Specification

Name

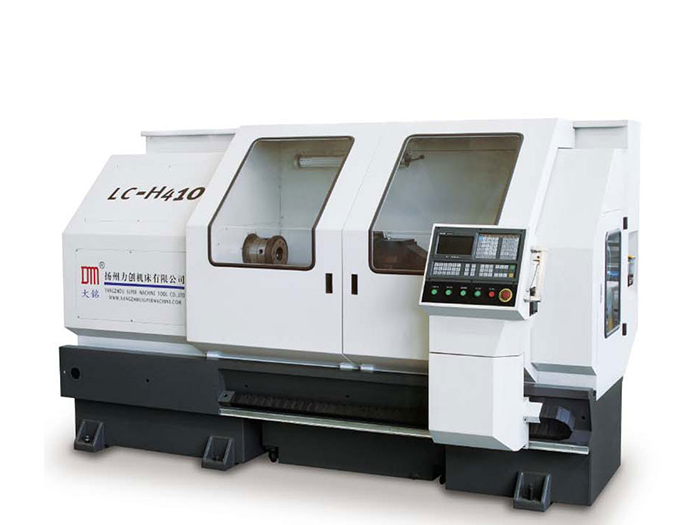

LC-H410

LC-H560

LC-H660

Swing over bed

410mm

560mm

660mm

Swing over cross slide

202mm

330mm

400mm

Length of work piece

1100mm

1100mm

1100mm

Distance between centers

1150mm

1150mm

1150mm

X-travel
Z-travel

1000mm
205mm

1000mm
305mm

1000mm
365mm

X Rapid speed
Z Rapid speed

15m/min
15m/min

15m/min
15m/min

15m/min
15m/min

X Cutting speed
Z Cutting speed

1~10000mm/min
1~10000mm/min

1~10000mm/min
1~10000mm/min

1~10000mm/min
1~10000mm/min

X Repositioning accuracy
Z Repositioning accuracy

0.006mm
0.01mm

0.006mm
0.01mm

0.006mm
0.01mm

 Min. input

0.001mm

0.001

0.001mm

Spindle bore
Spindle nose
Range of spindle speed

64.5mm
A2-6
0~4000r/min

82mm
A2-8
0~3000r/min

105mm
A2-8
0~2000r/min

Frequency conversion spindle motor

7.5kw

11kw

15kw

Max. spindle torque

89nm





Nos. of tool position

6

6

6

Max tool shrank

25×25mm

25×25mm

25×25mm

Quill diameter
Quill taper
Quill travel

75mm
莫式5号(MT5#)
160mm

75mm
莫式5号(MT5#)
160mm

75mm
莫式5号(MT5#)
235mm

Power supply

11kva

15kva

11kva

Overall size (L×W×H)

308×149×185



308×190×187

Packing size (L×W×H)

325×190×220

330×230×220

325×230×220

Net weight/ Gross weight

3000/3500kg

3100/3600kg

3000/3500kg



Standard Configuration

·

Rapid precision cutting type: high-speed + two axes linear way, figure above table



Horizontal electric turret



Auto lubrication, coolant system



Full cover



GSK980TA1 numerical control system

Standard Accessories







Wrench







Reduction sleeve







Alloy center







Short-taper three-jaw self-centring chucks

¢250

¢250

¢250

Optional Configuration



Low speed heavy cutting type:4 step headstock gear graduation + two axes box way

Frequency conversion spindle motor

5.5kw

7.5kw

11kw

Max. spindle torque

550nm

700nm

2400nm

Power supply

9kva

11kva

15kva

4 step headstock gear graduation, Grade infinitely variable speed

32~2000rpm

25~1600rpm

20~1400rpm

X Rapid speed of the box way

4m/min

4m/min

4m/min

Z Rapid speed of the box way

8m/min

8m/min

8m/min

Servo conversion spindle torque

9kw

11kw

15kw

Max. spindle torque

102nm





Vertical electric turret







Hydraulic chuck

¢200

¢250

¢300

Length

1500/2000/3000mm

1650/2150/3150mm

1650/2150/3150mm

FANUC Oi-mate-TD,SIMENS 802C,SIMENS 802Dsl, SIMENS 802S,KND90Ti,HNC-21TD
