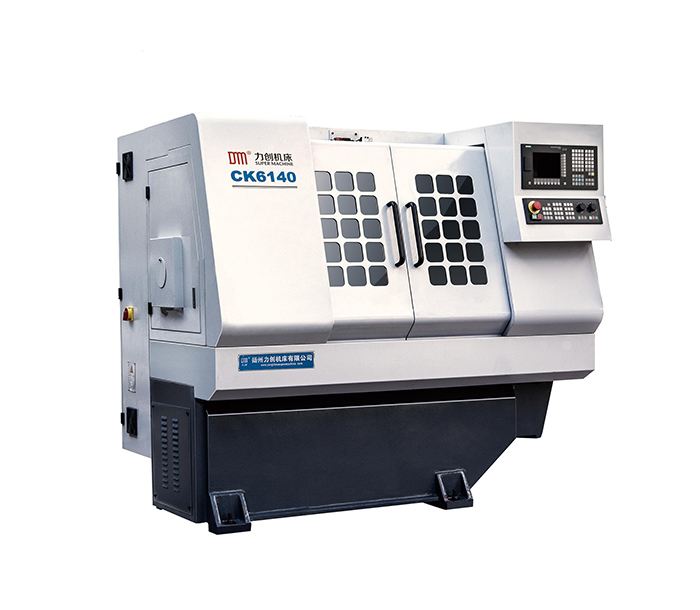

Name

Servo

Swing over bed

500mm

Swing over cross slide

195mm

Length of work piece

600mm

Distance between center

650mm

Z-travel

900mm

X-travel

240mm

Spindle bore
Taper of spindle bore
Spindle nose
Range of spindle speed

52mm
（MT6#）
D1-6
200-2200r/min

Z rapid speed(Box Way)
Z rapid speed(Linear Way)

8m/min
12m/min

Z cutting feed(Box Way)
Z cutting feed(Linear Way)

1~4000mm/min
1~5000mm/min

X rapid speed(Box Way)
X rapid speed(Linear Way)

3m/min
10m/min

X cutting feed(Box Way)
X cutting feed(Linear Way)

1~2500mm/min
1~3000mm/min

Power of main motor

5.5kw

Max. spindle torque

70Nm

Repositioning accuracy(Box Way)
Repositioning accuracy(Linear Way)

±0.006mm
±0.004mm

Min. input

0.001mm

Nos. of tool position

4

Max tool shrank

20×20mm

Tailstock diameter

60mm

Tailstock taper

（MT4#）

Tailstock travel

160mm

Power supply

11kva

Overall size(L×W×H)

210×120×200cm

Packing size(L×W×H)

220×132×222cm

Net weight/Gross weight

1500kg/1600kg

Standard accessories

Wrenches
·Reduction sleeve
·Center
·Short –Taper Three-Jaw self-Centring Chucks

Standard part

·Frequency conversion spindle motor 5.5kw
Max. spindle torque 70Nm
Power supply   11kVA
·2-Axis box way
·4 position vertical electric turret
·Auto lubrication , coolant system
·Simple cover
·GSK980TA numerical control system

optional

·Frequency conversion spindle motor 7.5kW
Max. spindle torque 95Nm
Power supply 13.5kVA
·16 Step headstock gear graduation 45～1800r / min
·X axis box way 、Z axis Hiwin linear guide way
·2- Axis Hiwin linear guide Way
·6 position horizontal electric turret
·Gang tool
·Full cover
·FANUC Oi-mate-TD 、 Siemens802C 、 KND100Ti 、HNC-21TD numerical control system
·Power Chuck
