Model |

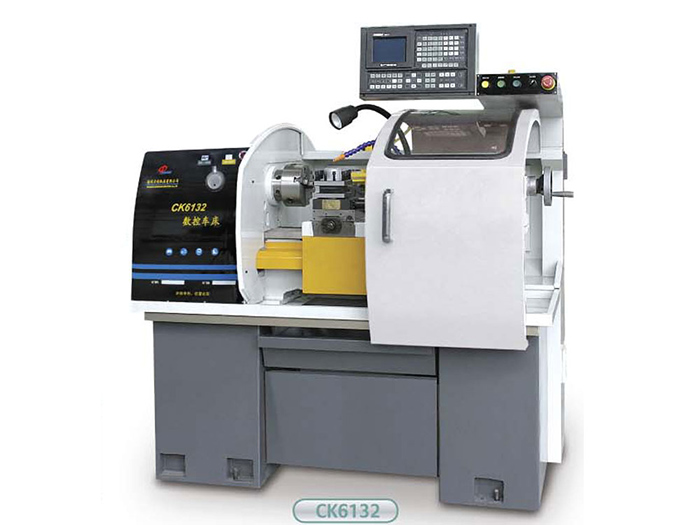

Ck6132×500/750 |
Swing over bed |
330mm |
Swing over carriage |
148mm |
Max length of work piece |
450/700mm |
Spindle bore |
38mm |
Taper of spindle bore |
莫氏5号 |
External taper of spindle |
D1-4 |
Spindle speed number |
|
Range of spindle speed |
100~875r/min 875~2500r/min |
Power of main motor |
3kw |
X - axle travel |
190mm |
Z - axle travel |
500/750mm |
X-axle rapid speed |
2.5m/min |
Z -axle rapid speed |
5m/min |
X-direction min setting unit |
0.01mm |
Z-direction min setting unit |
0.001mm |
Nos. of tool position |
4工位 |
Max size of tool holder |
16×16mm |
Diameter of tailstock sleeve |
45mm |
Travel of tailstock sleeve |
120mm |
Taper of tailstock sleeve |
莫氏3号 |
Net weight of machine tool |
610/650kg |
Gross weight of machine tool |
740/780kg |
Sizes of package |
168×114×201cm/193×114×201cm |
