Optional |
·3-Jaw Wedge Type Through Hole Power Chuck and Hydraulic Cylinder
·Hydraulic Tailstock
·8-step Hydraulic Index Unit Assembly
·Frequency conversion motor: 7.5KW(LC-H360),1KW(LC-H460)
·AC Servo Motor: 5.5KW(LC-H360),7.5KW(LC-H460)
·SIMENS 802DSL,HNC-21T,KND90Ti, FANUC numerical control system |

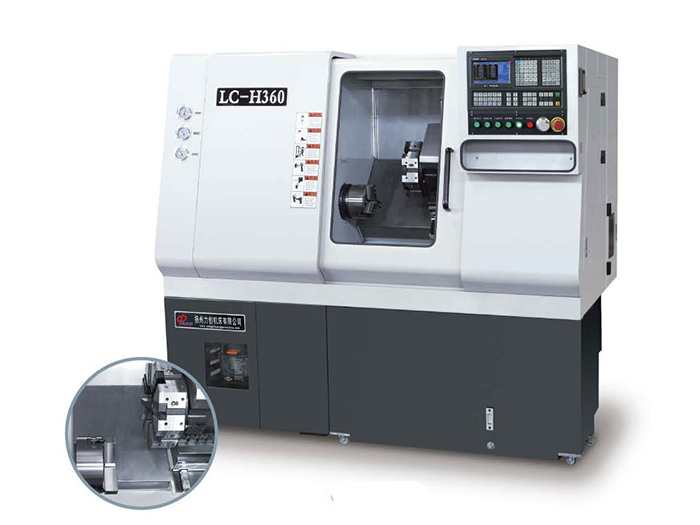

Features :
Spindle unit
◆High rigdity : 45°lathe bed . it is cylindrical cavity . its ability of bending resistance is strong
◆High Precision :high speed of spindle and high machining accuracy , manufacturing excellence ,advanced technology
◆Excellent Structure : stepless speed change of spindle , imported linear way compact structure , multiple options
Name |
单位 |
LC-H460 |
Swing over bed |
mm |
￠460 |
Swing over cross slide |
mm |
￠320 |
Length of work piece |
mm |
580 |
Distance between centers |
mm |
600 |
X-travel
Z-travel |
mm
mm |
200
580 |
X-Rapid speed
Z-Rapid speed |
m/min
m/min |
18
24 |
X Repositioning accuracy
Z Repositioning accuracy |
mm
mm |
0.005
0.005 |
Min. input |
mm |
0.001 |
Spindle bore
Spindle nose
Range of spindle speed |
mm
r/min |
￠56
A2-6
100~3500 |
Quill diameter
Quill taper
Quill travel |
mm
mm |
￠85
MT5#
100 |
Power of main motor |
kw |
7.5 |
Max. spindle torque |
nm |
|
Max tool shrank |
mm |
25×25 |
Power supply |
kva |
25 |
Overall size (L×W×H) |
mm |
|
Packing size (L×W×H) |
mm |
|
Net weight/ Gross weight |
kg |
|
Standard Configuration |
·Frequency conversion spindle motor
·2-Axis box way
·Gang tool
·Auto-lubrication, coolant system
·Full cover
·GSK980TA1 numerical control system
·Three jaw wedge type non through hole power chuck and hydraulic cylinder |
Standard Accessories |
Tool |
1套 |
|
|
Wedge |
1个 |
4 |
|
Alloy center |
1个 |
MT4# |
MT5# |
Screw |
7个 |
M16×400 GB799 |
M16×400 GB799 |
Washer |
7个 |
16 GB97.2 |
16 GB97.2 |
Nut |
7个 |
M16 GB6170 |
M16 GB6170 |
Parallels |
7个 |
LC-H360-01-15 |
LC-H360-01-15 |
Level gauge |
1个 |
LC-H360-15-01 |
LC-H360-15-01 |
|
