Standard part

·Oil plate
·Splash guard
·Three jaw chuck
·Reduction Sleeve s
·Center
·Tool box and tools

·Steady rest
·Follow rest
·Four jaw chuck
·Face plate

Optional

·Quick chang tool post
·Drill chuck
·Live center
·Lead screw cover
·Foot stand

Model

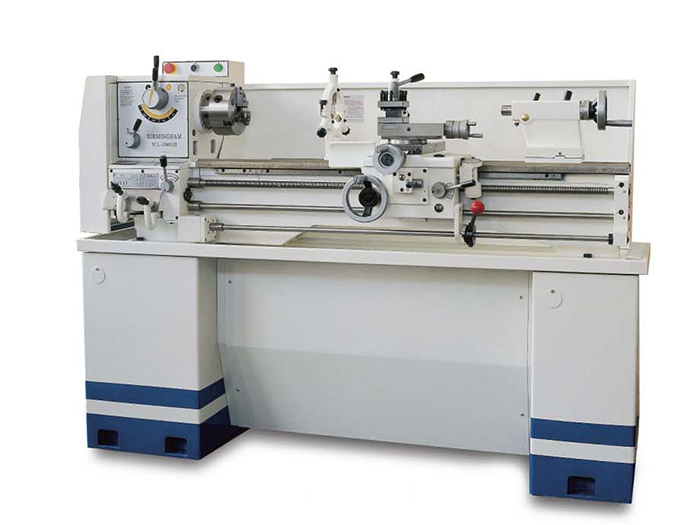

CQ6125×550

Swing over bed

230mm

10＂

Swing over cross slide

156mm

6-1/8＂

Length of work piece

550mm

22＂

Taper of spindle bore

莫氏4号

MT4#

Spindle bore

26mm

13/16＂

Range of spindle speed

125-2000r/min(50HZ)

150-2400r/min(60HZ)

Longitudinal feed per revolution of spindle

0.063-0.35mm/rev

0.0025＂-0.013＂

Range of inch threads to be cut

8-72T.P.I(32种)

8-72T.P.I(32 kinds)

Range of metric threads to be cut

0.25-3mm(18种)

0.5-3mm(18 kinds)

Quill diameter

32mm

1-1/4＂

Quill taper

莫氏2号

MT2#

Quill travel

65mm

2-1/2＂

Main motor power

0.75kw

1HP

Motor frequency

50HZor 60HZ

Net weight

150kg

330lbs

Floor space dimensions

1250×750mm

50＂×30＂

Packing size(L×W×H)

140×57×56.5cm

55＂×22-7/16＂×22-3/4＂

Gross weight

200kg

440lbs
