Standard accessories |
·three jaw chuck
·MT6/4 sleeve and MT4 center
·Tool box & tools 1 set |
Special accessories |
·Driving plate
·Quick change tool post
·Taper turning |
Features:
◆Whole foot stand
◆Feed box construction design patent
◆Appearance design patent
Specification
Specification |

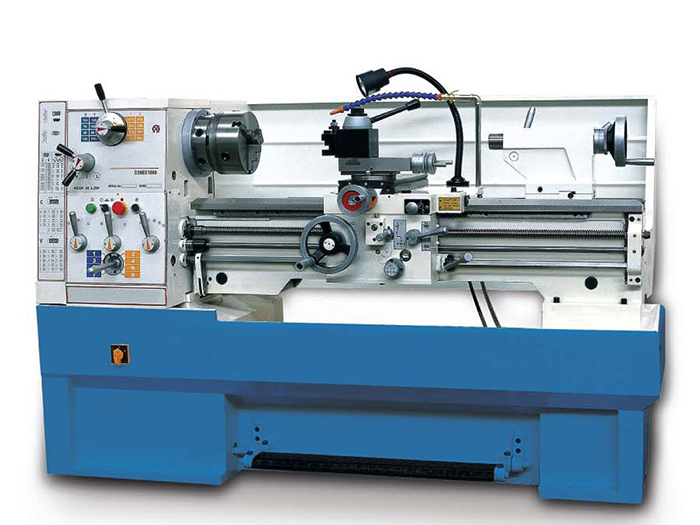

Models |
CM6241×1000/1500 |
CM6241V×1000/1500 |
Capacity |
|
Swing over bed |
410mm(16") |
Swing over cross slide |
255mm(10") |
Swing in gap diameter |
580mm(23") |
Length of gap |
190mm(7-1/2") |
Admits between |
1000mm(40")/1500mm(60″) |
Center height |
205(8″) |
Width of bed |
250(10") |
HEADSTOCK |
|
Spindle nose |
D1-6 |
Spindle bore |
52mm(2") |
Taper of spindle bore |
No.6Morse |
Range of spindle speed |
16 changes 45-1800r/min |
30-550r/min or 550-3000r/min |
FEEDS AND THREADS |
|
Compound rest travel |
140mm(5-1/2") |
Cross slide travel |
210mm(8-1/4") |
Lead screw thread |
4T.P.I. |
Max.Section of tool (W×H) |
20×20mm(13/16") |
Longitudinal feeds range |
0.05-1.7mm/rev(0.002"-0.067"/rev) |
Cross feeds range |
0.025-0.85mm(0.001"-0.0335"/rev) |
Threads metric pitches |
39kinds 0.2-14mm |
Threads imperial pitches |
45kinds 2-72T.P.I |
Threads diametral pitches |
21kinds 8-44D.P. |
Threads module pitches |
18kinds 0.3-3.5M.P. |
TAILSTOCK |
|
Quill diameter |
50mm(2") |
Quill travel |
120mm(4-3/4") |
Quill taper |
No.4 Morse |
Cross adjustment |
±13mm(±1/2") |
MOTOR |
|
Main motor power |
2.2/3.3kW(3/4.5HP)3PH |
Coolant pump power |
0.1KW(1/8HP),3PH |
DIMENSION AND WEIGHT |
|
Overall dimension(L×W×H) |
194×85×132cm/244×85×132cm |
Packing size(L×W×H) |
206×90×164cm/256×90×164cm |
Net weight/Gross weight |
1160kg/1350kg 1340 kg /1565 kg |
|
|
|
