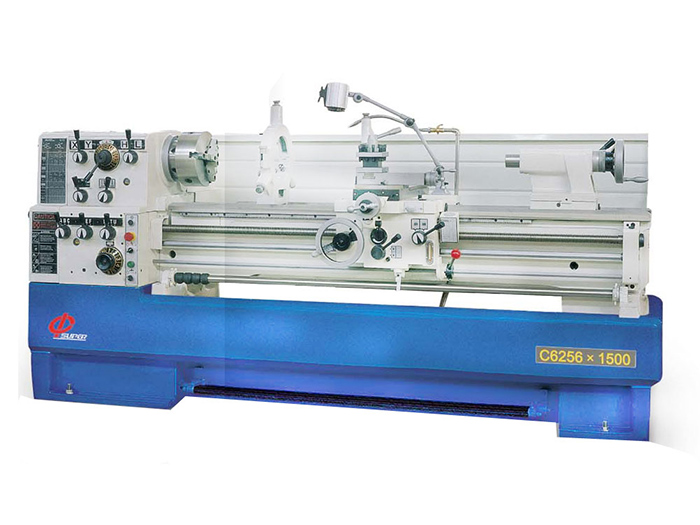

MACHINE TOOL TYPE |
C6280 |
CAPACITY |
Swing Over Slide |
Φ800mm |
Swing Over Cross Slide |
Φ560mm |
Swing in Gap Diameter |
Φ1040mm |
Length of Gap |
250mm |
Center Height |
400mm |
Distance Between Centers |
1500mm/2000mm/3000mm |
Width of Bed |
510mm |
Max. Section of Tool |
25mm × 25mm |
Max. Travel of Cross Slide |
420mm |
Max. Travel of Compound Rest |
230mm |
HEADSTOCK |
Spindle Bore |
Φ105mm |
Spindle Nose |
D1-8 |
Taper of Spindle Bore |
Φ113mm(1:20)/MT5 |
Spindle Speed Number |
16 |
Range of Spindle Speed |
17～1100rpm |
FEEDS AND THREADS |
Leadscrew Pitch |
Φ40mm×2T.P.I. or Φ40mm×12mm |
Inch Threads Range |
7/16～80T.P.I. (54 kinds) |
Metric Threads Range |
0.45～120mm (54 kinds) |
Diametrical Pitches Range |
7/8～160DP (42 kinds) |
Module Pitches Range |
0.25～60MP (46 kinds) |
Longitudinal Feeds Range in Metric Lead Screw |
0.044～1.48mm/rev (25 kinds) |
Longitudinal Feeds Range in Inch Lead Screw |
0.00165"～0.05497"/rev (25 kinds) |
Cross Feeds Range in Metric Lead Screw |
0.022～0.74mm/rev (25 kinds) |
Cross Feeds Range in Inch Lead Screw |
0.00083"～0.02774"/rev (25 kinds) |
TAILSTOCK |
Quill travel |
235mm |
Quill diameter |
Φ90mm |
Quill taper |
MT5 |
MOTOR |
Main motor power |
11kW (15HP) |
Coolant pump power |
0.09kW (1/8HP) |
DIMENSION AND WEIGHT |
Overall Dimension (L×W×H) |
321/371/471cm×136cm×167cm |
Packing Size (L×W×H) |
324/374/474cm×127cm×191cm |
Net Weight |
3320/3605/3970kg |
Gross Weight |
3825/4125/4600kg |
