Standard accessories

·3 Jaw chucka and
·Sleeve and center
·Oil gun

Special accessories

·4 Jaw chucka and
·Face plates
·Driving plate
·Steady rest
·Follow rest
·Quick change tool post
·Taper turning attachment

Specification

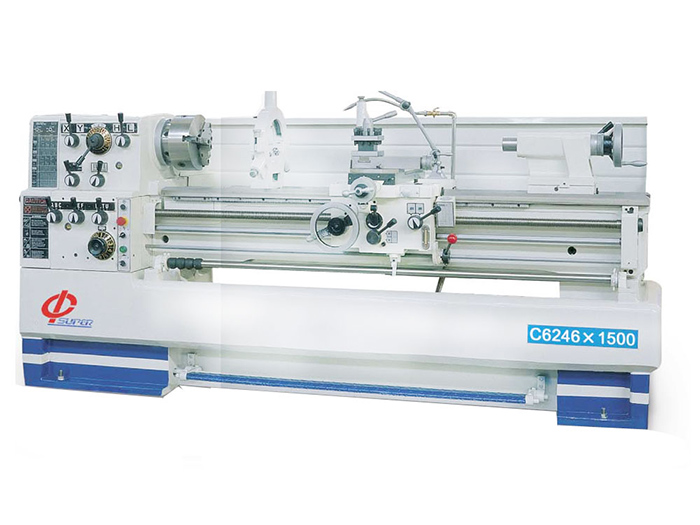

Model

C6241×1000

C6241V×1500

C6246×2000

C6246V×1000

C6246V×1500

C6246V×2000

Capacity

Swing over bed

410mm(16")

460mm(18")

Swing over cross slide

220mm(8-13/16")

270mm(10-3/4")

Swing in gap diameter

640mm(25-1/8")

690mm(27-1/8")

Distance between centers

1000mm(40")

1500mm(60")

2000mm(80")

1000mm(40")

1500mm(60")

2000mm(80")

Valid length of gap

165mm(6-1/2")

Width of bed

300mm(11-13/16")

Headstock

Spindle nose

D1-6

Spindle bore

58mm(2-1/4")

Taper of spindle bore

No.6 Morse

Range of spindle speed

12 changes, 25～2000r/min

Feeds and threads

Compound rest travel

128mm(5")

Cross slide travel

285mm(11-1/4")

Max.section of tool

25×25mm(1"×1")

Lead screw thread

6mm or 4T.P.I.

Longitudinal feeds range

42 kinds, 0.031～1.7mm/rev(0.0011"～0.0633"/rev)

Cross feeds range

42 kinds, 0.014～0.784mm/rev(0.00033"～0.01837"/rev)

Threads metric pitches

41 kinds, 0.1～14mm

Threads imperial pitches

60 kinds, 2～112T.P.I.

Threads diametral pitches

50 kinds, 4～112DP

Threads module pitches

34 kinds, 0.1～7MP

Tailstock

Quill diameter

60mm(2-5/16")

Quill travel

130mm(5")

Quill taper

No.4 Morse

Motor

Main motor power

5.5kW(7.5HP) 3PH

Coolant pump power

0.1kW(1/8HP) 3PH

Dimension and weight

Overall dimension(L×W×H)

220×108×134cm

275×108×134cm

325×108×134cm

220×108×137cm

275×108×137cm

325×108×137cm

Packing size(L×W×H)

225×112×162cm

280×112×156cm

330×113×156cm

225×112×162cm

280×112×156cm

330×113×156cm

Net weight

1580kg

1745kg

1900kg

1645kg

1810kg

1965kg

Gross weight

1845kg

2050kg

2230kg

1910kg

2115kg

2295kg
