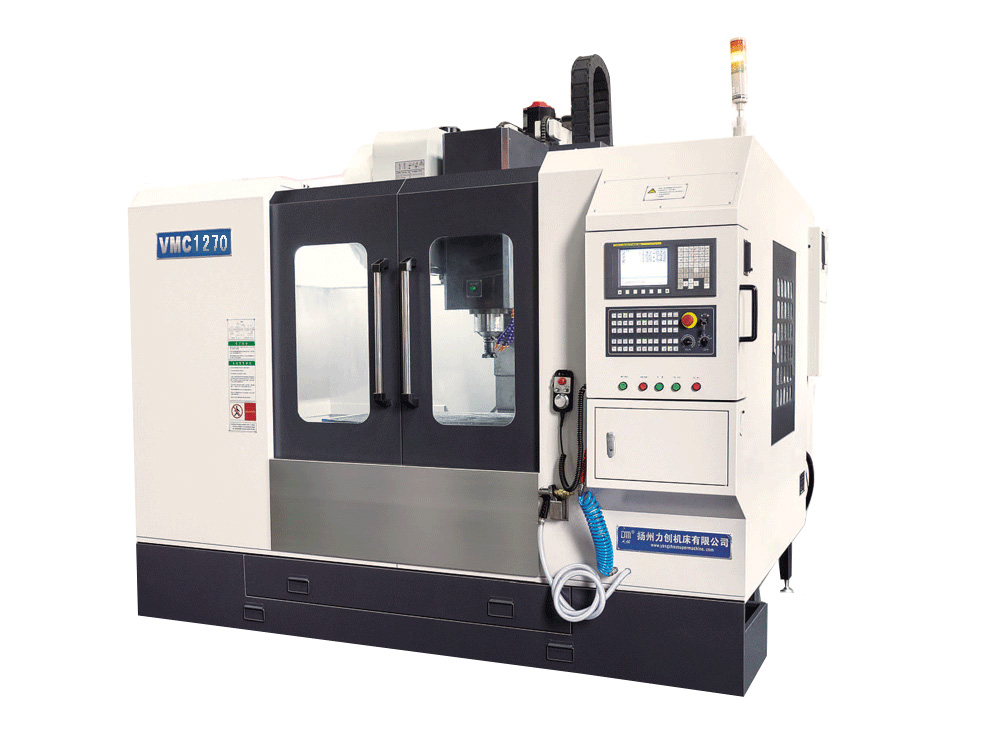

XH712(VMC450) XH713(VMC650) XH715(VMC850)
XH716(VMC1060) XH717(VMC1270)

Features:

◆ High ragidity , High reliability, High cuting power
◆ Taiwan 24 position tool storage
◆ 3-linear guideway
◆ Spindle made by Taiwan

Specification

Model

XH716G

Worktable size ( L×W )

1360×700mm

Max. loading capacity

800kg

T - Slots

5×18×152.5mm

X -travel

1200mm

Y -travel

700mm

Z -travel

650mm

Distance from spindle nose to table

150~800mm

Spindle inner taper

ISO50 / ISO40

Tool

BT50 / BT40

Spindle speed range

20~8000r/min

Cutting feed ( X 、 Y 、 Z )

1~10000mm/min

Rapid speed ( X 、 Y 、 Z )

36000mm/min

Power of main motor

11kw/15kW

Max. spindle torque

52.5N.m

Positioning accuracy ( X 、 Y 、 Z )

±0.01mm

Repositioning accuracy( X 、 Y 、 Z )

±0.005mm

Storage of tool

24把

Tool change time ( T - T )

1.8sec

Power supply
29kVA
Overall size ( L×W×H )
350×295×320cm
Packing Size ( L×W×H )
395×330×380cm

Net weight

9500kg

Standard configuration

·Ball linear guide rail



Optional configuration

·Roller linear guide rail
