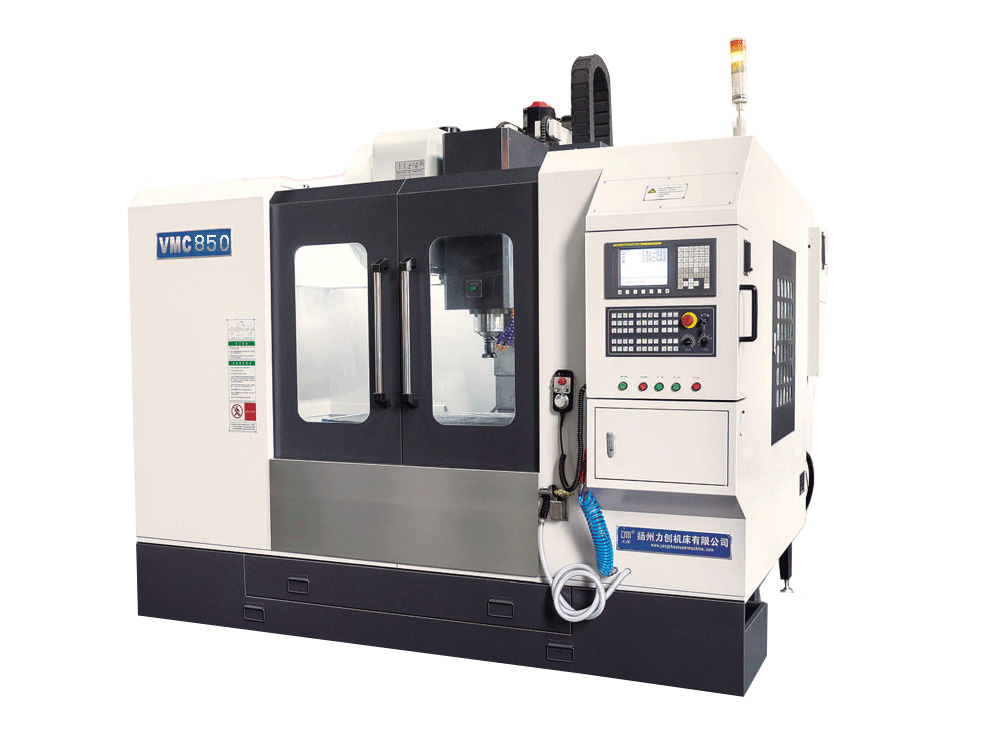

XH712(VMC450) XH713(VMC650) XH715(VMC850)
XH716(VMC1060) XH717(VMC1270)

Features:
Pieces of high rigidity, high reliability, large cutting power
The disc knife stock in pieces
Mixer triaxial linear guide
Main shaft mixer Taiwan

Specification

type

XH715G

Model

基  本  参  数

Worktable size ( L×W )

500×1000MM

Max. loading capacity

500kg

T - Slots

5×18×80mm

X -travel

800mm

Y -travel

500mm

Z -travel

550mm

Distance from spindle nose to table

180~730mm

Spindle inner taper

ISO40

Tool

BT40

Spindle speed range

20~8000r/min

Cutting feed ( X 、 Y 、 Z )

1~10000mm/min

Rapid speed ( X 、 Y 、 Z )

36000mm/min

Power of main motor

7.5kw/11kW

Max. spindle torque

35.8N.m

Positioning accuracy ( X 、 Y 、 Z )

±0.01mm

Repositioning accuracy( X 、 Y 、 Z )

±0.005mm

Storage of tool

24把

Tool change time ( T - T )

1.8sec

Power supply
29kVA
Overall size ( L×W×H )
255×250×245cm
Packing Size ( L×W×H )
290×285×305cm

Net weight

6000kg

Standard configuration

·Ball linear guide rail



Optional configuration

·Roller linear guide rail
