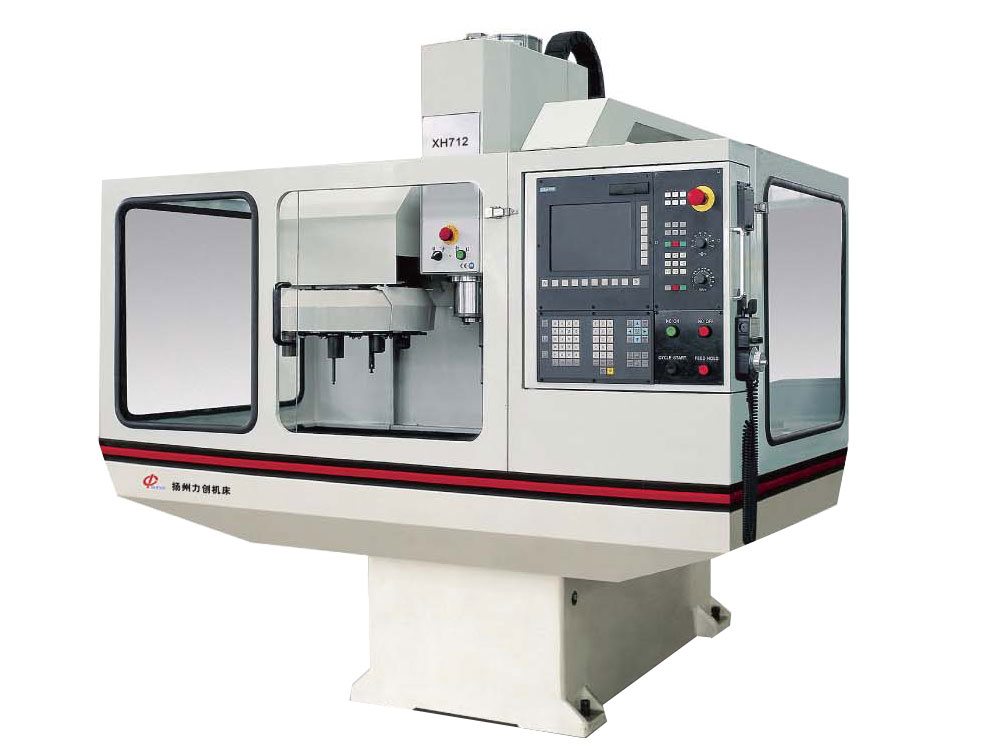

XH712(VMC450) XH713(VMC650) XH715(VMC850)
XH716(VMC1060) XH717(VMC1270)

Specification

Model

XK712G

Worktable Size

920×280mm

Max loading capacity

250kg

T - Slots

3×14×85mm

X -travel

450mm

Y -travel

300mm

Z -travel

400mm

Distance from spindle nose to table

110~510mm

Spindle inner taper

ISO40

Tool

BT40

Spindle speed range

100~6000r/min

Cutting feed

1~3000mm/min

Rapid speed

10000mm/min

Power of main motor

4kw/7kw

Max spindle torque

35Nm

Positioning accuracy

±0.011mm

Repositioning accuracy

±0.006mm

Storage of tool



Tool Change time ( T - T )



Power supply

11KVA

Overall Size ( L×W×H)

192×169×210cm

Packing Size(L×W×H)

210×177×222cm

Net Weight

1700kg

10T Rotary Disc-type Tool Magazine (Pneumatic Type)

Number

Item

Specifications

1

Automatic tool change mode

Up and down moveable main spindle nose

2

Tool selection mode

Optional in billaeral positive and reverse rotation

3

Tool magazine capacity classification

10T

4

Max. tool diameter

90mm

5

Max. tool weight

8kg

6

Max. tool length

250mm

7

Tool specification

BT40

8

Source of power for tool magazine move

6kg/cm2 Pneumatic 6kg/cm2

9

Length of travel from tool holding center of tool magazine

230mm

10

Protruding stroke of pneumatic cylinder

230mm

11

Driving motor including reducer

60W×380V×1/25r

12

Magnetic ring proximity switch used in pneumatic cylinder

RS=63 R24V

13

Proximity switch used for tool shank position

FL7M-2J6HD

14

Tool change time

7S


standard accessories

wrenches
Retention knob
Collets
Hook wrench




Optional

·X , Y axis Hiwin linear guide Way ( rapid travel speed 24m )
·Spindle speed 10000r / min
·CAT40 shrank
·HNC218M,GSK980M,KND1000M ( etc. control system )
·Full cover
·No. 4 axis
