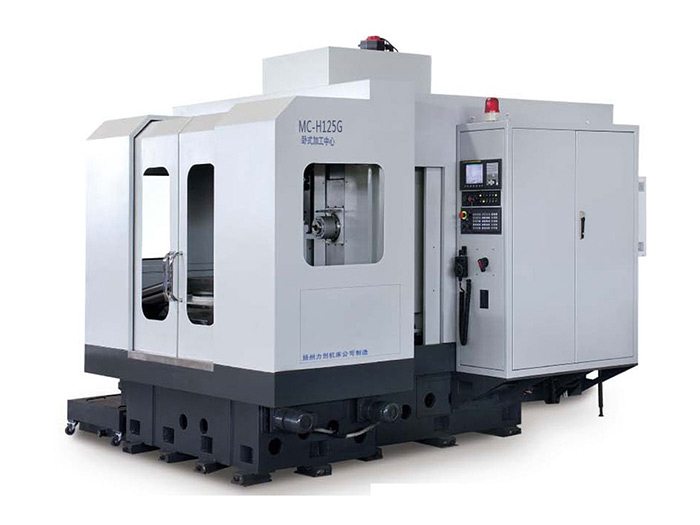

MC-H40 XMC-H50 MC-H63
MC-H80 MC-H125

Features:
◆ A prevalent inverted “T”shaped layout is in the base frame, which is high in rigidity of the integral structure and is not creative of any overturning during the full stroke
◆ The base frame manufacture by five-sided machine high-precisely machining centre , finish most work in one chucking
◆ A grouped 600 angular contact ball bearing 15 adopted in the lead screw , which 15 doubly supported and pre-tensioned ,50 as to increase the machining precision
◆ High-frequency hardened slide rails or heavy- load high precision roller guideways , which have an excellent property of shock absorption and can bear heaVy Ioad cutting
◆ Taiwan precision spindle , 6 , 000r / min and with air film protection device , so as to ensure to keep the spindle precision and service long life
◆ CNC rotary table , Indexing table ,exchange table for optional

Specification

Model

MC-H125G

Worktable size(L×W)

1250×1250mm

Max. loading capacity

4000kg

X- travel

2500mm

Y- travel

1600mm

Z- travel

1400mm

Distance from spindle nose to table

400 ~1800mm

Distance from spindle center to table

Single table

100 ~1700mm

Double table



Spindle inner taper

ISO 50

Spindle speed range

20 ~ 4000rpm

Rapid speed(x、y、z)

16000mm/min

Max. speed of table

r/min

Positioning accuracy

0.025mm

Repositioning accuracy

0.015mm

Storage of tool

60把

Tool change time(T-T)

10s

Max. tool weight

25kg

Max. tool diameter

125mm

Max. tool length

500mm

Power of main motor

22/26kW

Overall size (L×W×H ) 600×680×450cm

Net weight

29000kg



Standard configuration

• Spindle speed: 8000r/min
• Spindle and servo motor load show
• Spindle and servo over loading protection
• Rigid tapping
• Full closed cover
• Electronic handwheel
• Lighting equipment
• Double helix chip cleaner
• Auto lubration system
• Electric box constant temperature devices
• Spindle tool coolant system
• RS232 interface
• Manual air gun
• Spindle taper cleaner
• Tool box



Optional configuration

• 3- axis Grating detection equipment
• Workpiece measurement system
• Cutter measurement system
• Spindle internal- cooling
• CNC rotary working- table
• Chaining chip cleaner
• Length DSET and edge finder oftool
• Oil and water splitter filter
• Spindle water- coolant equipment
• Network function
