features :
◆A prevalent inverted “T”, Shaped layout is in the base frame, which is high in rigidity of the integral structure and is not creative of any overturning during the full stroke
◆The base frame manufacture by five-sided machine high-precisely machining centre , finish most work in one chucking
◆A grouped 600 angular contact ball bearing 15 adopted in the lead screw , which 15 doubly supported and pre-tensioned ,50 as to increase the machining precision
◆High-frequency hardened slide rails or heavy- load high precision roller guideways , which have an excellent property of shock absorption and can bear heaVy Ioad cutting
◆Taiwan precision spindle , 6 , 000r / min and with air film protection device , so as to ensure to keep the spindle precision and service long life
◆CNC rotary table , Indexing table ,exchange table for optional
Specification

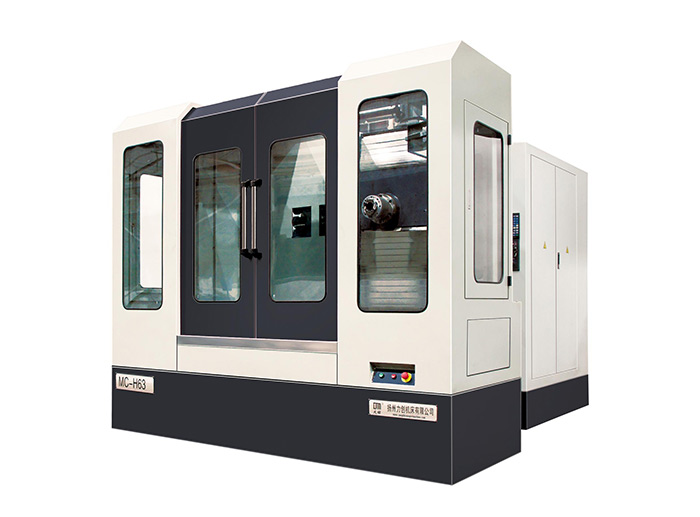

MODEL |
MC-H63G
MC-H80(Liner way) |
Worktable dimensions ( L×W ) |
630×630mm |
Number of worktables |
1 |
Worktable indexing |
1°×360 |
T shaped slot (number of slot×width of slot× interval ) |
5×22×125mm |
Maximum load capacity of Worktable |
1000kg |
X axis travel |
950mm |
Y axis travel |
830mm |
Z axis travel |
750mm |
Distance from center of spindle to worktable |
120~870mm |
Distance from spindle nose to Center of worktable |
170~1000mm |
Spindle taper |
BT50 |
Maximum spindle speed |
8000r/min |
Rapid traveling ( X 、 Y and Z ) |
24000mm/min |
Maximum speed of table |
10r/min |
Tool room capacity |
40 |
Tool selection mode |
random |
Maximum tool dimensions ( diameter, length ) |
￠125×320
Without adjacent tool) ￠250×350 |
Maximum tool weight |
25kg |
Tool change time ( tool to tool ) |
5.5s |
G.W |
14000kg |
Positioning precision |
0.012mm(Full range) |
Repeatability repositioning precision |
0.008mm(Full range) |
Standard configuration |
• Spindle and servo motor load show
• Spindle and servo over loading protection
• Rigid tapping
• Full closed cover
• Electronic handwheel
• Lighting equipment
• Double helix chip cleaner
• Auto lubration system
• Electric box constant temperature devices
• Spindle tool coolant system
• RS232 interface
• Manual air gun
• Spindle taper cleaner
• Tool box |
|
Optional configuration |
·• 3- axis Grating detection equipment
• Workpiece measurement system
• Cutter measurement system
• Spindle internal- cooling
• CNC rotary working- table
• Chaining chip cleaner
• Length DSET and edge finder oftool
• Oil and water splitter filter
• Spindle water- coolant equipment
• Network function
|
|
|
