Features:

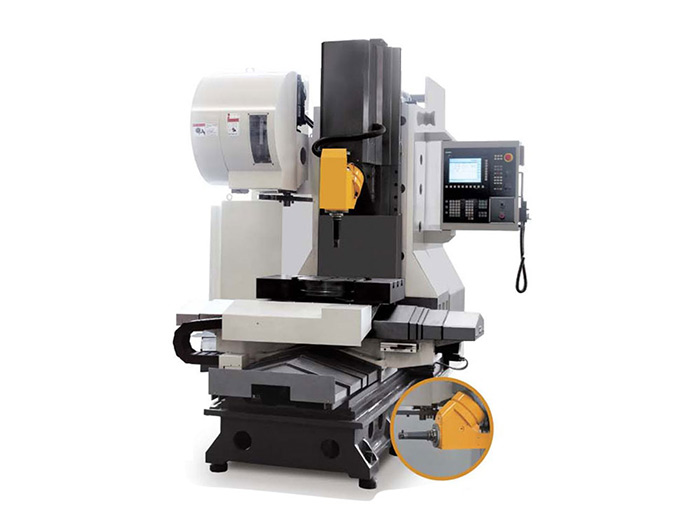

◆Its spindle nose has the function of automatic vertical & horizontal transform. The machine center has all the function of vertical machine center & horizontal machine center
◆Indexing table 1°×360 , gear plate positioning , high precision positioning
◆X - axis, y - axis guide way are quenching and laminating, Z- axis is imported linear roller guide
◆Preloader leader Screw with the directness drive system
◆Spindle nose positioning is JRTR high precision gear plate positioning
◆Positioning precision: X, Y, Z: 0.015 mm B: 10 ' '
◆Repositioning precision: X, Y, Z: 0.01 mm B: 5 ' '
◆The span of Z - axis guide way is 600 mm
◆Headstock is simple and reliable counterweight balance
Standard part |
·CNC system : Siemens 802D SL
·Power of spindle motor : 6.25 / 7.75kw
·Spindle speed : 3000r / min
·Cam manipulator Tool magazine : 24
·Electronic hand wheel
·Lighting equipment
·Auto lubrication system
·Toolbox
·Spindle tool coolant system
·Rigid tapping
·RS232 interface
·Manual air gun
·Cutting cooling box |
Special configuration |
·CNC system : Siemens 840DE
·Spindle speed : 6000r / min
·Continuous rotary working- table
·Length DSET and edge finder of tool
·Electric box Constant Temperature Devices
·Oil and water splitter Filter |
Specification
Items |
MC-VH50 |
Worktable dimensions(L×W) |
500×500mm |
Worktable indexing |
1°×360 |
T shaped slot
(Number of slots×width of slots×interval) |
5×18×100mm |
Maximum load capacity of worktable |
500kg |
X axis travel |
700mm |
Z axis travel |
810mm |
Y axis travel |
700mm |
Distance from center of spindle to center of worktable(vertical) |
-0-810mm |
Distance from spindle nose to worktable(vertical) |
-10~690mm |
Distance from center to spindle to worktable(horizontal) |
50-750mm |
Distance from spindle nose to center of worktable(vertical) |
-70~740mm |
Spindle taper |
BT40 |
Spindle speed |
20~3000r/min |
Spindle torque |
|
Spindle motor |
15/18.5kw |
Rapid traveling（ X 、Y、 Z ) |
2400mm/min |
Feed speed（ X 、Y、 Z ) |
1-10000mm/min |
Minimum enactment unit of machine tool |
0.001mm |
Feeding motor（ X 、Y、 Z ) |
16、16、27N.m |
Storage of tool |
30把 |
Tool selection mode |
随机 |
Maximum tool dimensions(Diameter×Length) |
￠77×320mm |
￠130×300mm |
Maximum tool weight |
8kg |
Tool change time(tool to tool) |
2.5s |
Maximum speed of table |
5r/min |
Drive motor of table |
11N.m |
Overall size(L×W×H) |
365×280×234cm |
Weight of machine tool |
14000kg |
|
